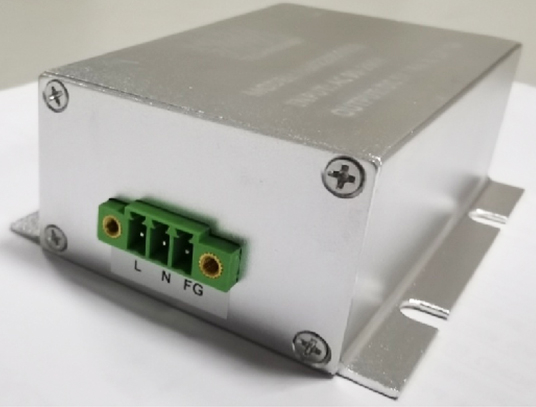

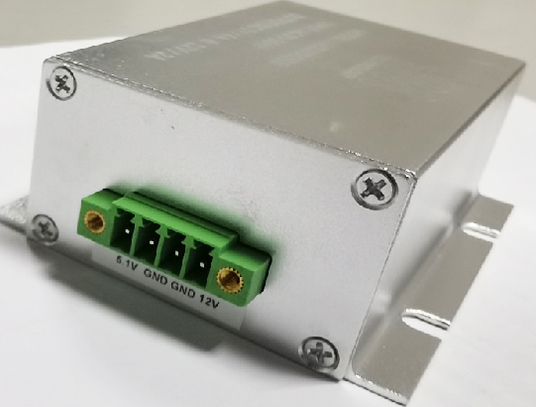

  Input voltage: 90V – 264VAC
  High efficiency, high power density design
  Protection function: over temperature protection, over voltage protection, over current protection, short circuit protection
  2 outputs, output power: 50W Max.
  Ultra-low ripple and noise: 15mV Max.
  Metal shell design, electromagnetic radiation (EMC) high-level protection
  Operating temperature: -20℃ – 50℃
  Three-proof: anti-moisture, anti-mold, anti-salt spray design
  Product Dimensions (L x W x H): 83 x 51.5 x 30 mm

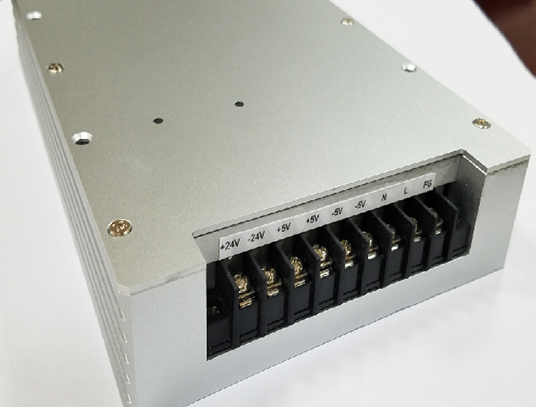

  Input voltage: 90V – 290VAC (190 – 400VDC)
 Power factor: 0.9(Typical)
 2 outputs, output power: 170W Max.
 Protection function: over temperature protection, over voltage protection, over current protection, short circuit protection
 Ultra-low ripple and noise: 15mV Max.
 EMI conforms to EN55022 Class A, or GJB151A
 Strengthened mechanical design, in line with GJB150 related specifications, or MIL-STD-810G
 Operating temperature: -20 – 85℃
 Three-proof: anti-moisture, anti-mold, anti-salt spray

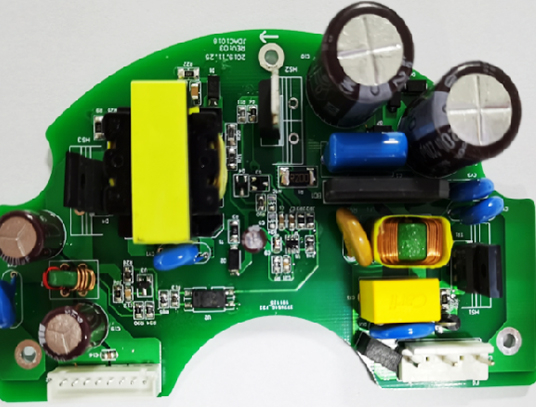

  Input Voltage: 15 – 75VAC
 High lightning protection design (2KV)
 Single output voltage, output power 25W
 Protection function: over temperature protection, over voltage protection, over current protection, short circuit protection
 EMI conforms to EN55032 class B
 Ultra-low ripple and noise: 20mV Max.
 Operating temperature: -20 – 50℃
 Product high reliability design (MTBF > 100K hours@25 ℃)

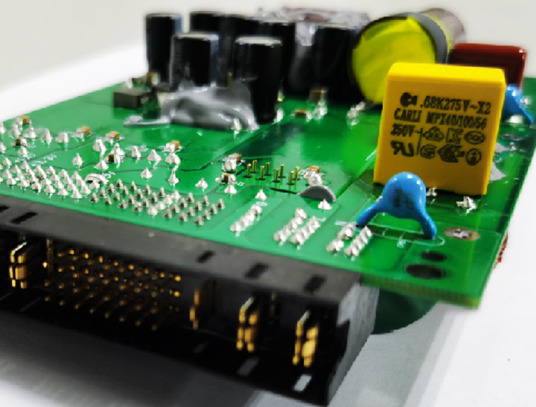

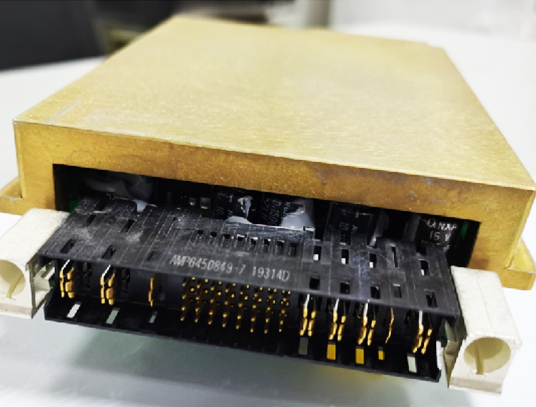

  Input Voltage: 176 – 264VAC
 Input current: <2.5A @ 220VAC
 Power factor: 0.9(Typical)
 Compliant with Open VPX, 4 outputs, output power: 450W Max.
 Protection function: over temperature protection, over voltage protection, over current protection, short circuit protection
 Standard VITA62 3U cooling structure, thickness 1 inch.
 Comply with GJB150 related specifications, or MIL-STD-810G
 The core components are high-level modules, supporting redundant N+1 design
