Features
• Universal Input Voltage: 100 --240VAC
• LED Indicator
• LPS Compliance
• Protections:
• Short Circuit / Over Voltage
Over Current / Over Temperature
• Energy Efficiency Level VI or CoC Tier II
• No Load Power Consumption:
Output Power < 50W:
≤0.1W(VI), ≤0.075W(Tier II)
Output Power ≥ 50W:
≤0.21W(VI), ≤0.15W(Tier II)
• MTBF > 100,000 hours

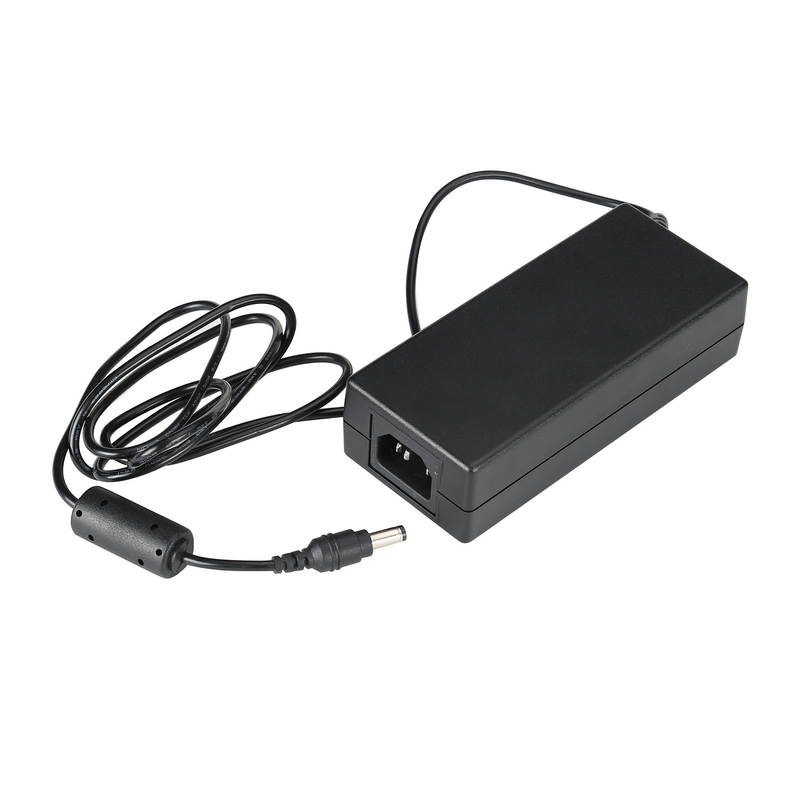

HA1065 X Y
X:AC Inlet: 1. C14 2. C8 3. C6
Y:Output voltage range
MODEL No. | MAX. OUTPUT POWER | OUTPUT VOLTAGE | MIN. | MAX. | LOAD REGULATION | LINE REGULATION | RIPPLE & NOISE |
LOAD | LOAD | ||||||
HA1065xA | 25W | 5 -- 9V | 0A | 5.0A | ± 5% | ± 1% | 180mV |
HA1065xB | 40W | 12 -- 16V | 0A | 3.33A | ± 5% | ± 1% | 240mV |
HA1065xC | 40W | 18 -- 24V | 0A | 2.10A | ± 5% | ± 1% | 360mV |
HA1065xD | 40W | 32 -- 42V | 0A | 1.25A | ± 5% | ± 1% | 630mV |
HA1065xE | 40W | 44 -- 56V | 0A | 0.90A | ± 5% | ± 1% | 840mV |
HA1065xF | 30W | 5 -- 9V | 0A | 6.0A | ± 5% | ± 1% | 180mV |
HA1065xG | 50W | 12 -- 16V | 0A | 4.16A | ± 5% | ± 1% | 240mV |
HA1065xH | 50W | 18 -- 24V | 0A | 2.63A | ± 5% | ± 1% | 360mV |
HA1065xJ | 50W | 32 -- 42V | 0A | 1.56A | ± 5% | ± 1% | 630mV |
HA1065xK | 50W | 44 -- 56V | 0A | 1.13A | ± 5% | ± 1% | 840mV |
HA1065xL | 40W | 5 -- 9V | 0A | 8.0A | ± 5% | ± 1% | 180mV |
HA1065xM | 35W | 5 -- 9V | 0A | 7.0A | ± 5% | ± 1% | 180mV |
HA1065xN | 60W | 12 -- 16V | 0A | 5.0A | ± 5% | ± 1% | 240mV |
HA1065xP | 60W | 18 -- 24V | 0A | 3.15A | ± 5% | ± 1% | 360mV |
HA1065xQ | 60W | 32 -- 42V | 0A | 1.87A | ± 5% | ± 1% | 630mV |
HA1065xR | 60W | 44 -- 56V | 0A | 1.36A | ± 5% | ± 1% | 840mV |
HA1065xS | 65W | 12 -- 16V | 0A | 5.42A | ± 5% | ± 1% | 240mV |
HA1065xT | 72W | 12 -- 16V | 0A | 6.0A | ± 5% | ± 1% | 240mV |
HA1065xU | 72W | 18 -- 24V | 0A | 3.78A | ± 5% | ± 1% | 360mV |
HA1065xV | 72W | 32 -- 42V | 0A | 2.25A | ± 5% | ± 1% | 630mV |
HA1065xW | 72W | 44 -- 56V | 0A | 1.63A | ± 5% | ± 1% | 840mV |
NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) >=Vo x Io
Electrical Specification
INPUT
• Input Range 100 to 240 VAC
• Frequency 50 to 60Hz
• Input Current <=2.0A
• Inrush Current 80A/100VAC 120A/230VAC
• Hold Up Time ≥8.3ms
• Turn On Time <=3s
OUTPUT
•Over Voltage Protection Auto Recovery / Latch off
•Short Circuit Protection Auto Recovery
•Over Current Protection Auto Recovery
ENVIRONMENTAL
•Operating Temperature 0 to 40°C
•Storage Temperature -20 to 85°C
•Operation Humidity 10% to 90 %
•Storage Humidity 5% to 95 %
SAFETY
• Certified for the whole series: EN60950, CCC
• Certified for the assigned models: EN60335, PSE
If you've ever had to fumble around with a bunch of different adapters to charge your devices, you know how frustrating it can be. With this Universal Plug Type C Adapter, you can finally ditch all those other adapters and plugs! This one adapter will work with any device that uses a Type C charging port.
Type C is the new standard for charging and data transfer, so if you have a newer device, chances are it uses this type of port. The best part about this adapter is that it's compatible with Powerline, which is the fastest and most efficient way to charge your devices. So not only will you be able to use just one adapter for all your devices, but you'll also be able to charge them faster than ever before!
One of the great advantages of the Universal Plug Type C Adapter is its compatibility with a variety of powerline standards. This means that it can be used with almost any type of powerline equipment, making it a very versatile and convenient product. Additionally, the Universal Plug Type C Adapter is very easy to install and use, making it a great choice for those who are not familiar with powerline equipment.
This product is designed to be used with powerline adapters. It allows you to connect your device to the adapter without having to worry about compatibility issues. The product is also great for use with travel adapters, as it can be used with any type of outlet. This product is the perfect solution for anyone who needs an adapter that can be used with any type of outlet.
