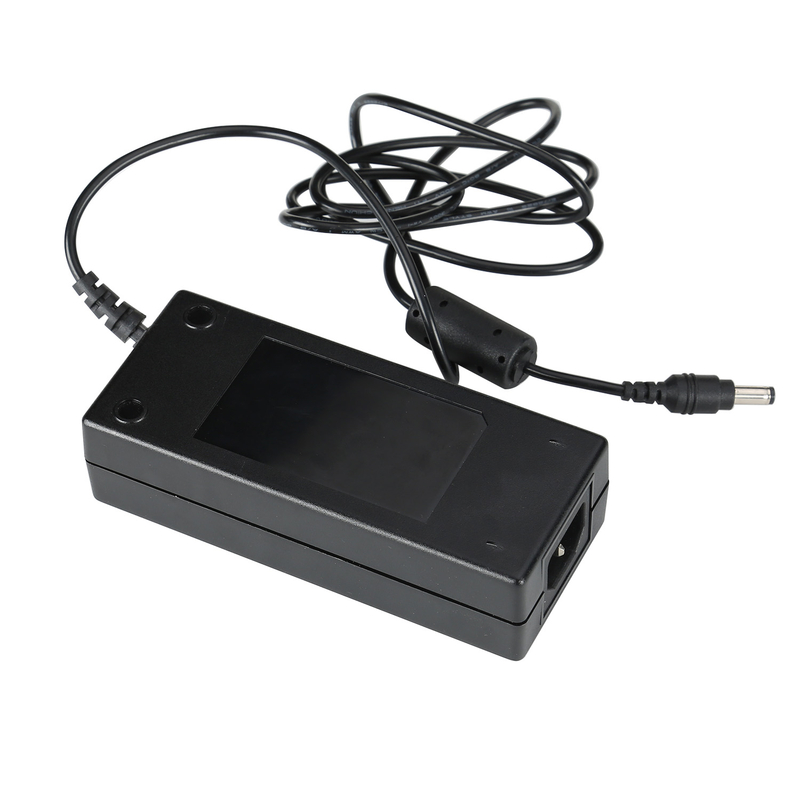

80W ~ 130W Max. Features: • 100 --240VAC Universal Input • Active PFC Function • LED Indicator • Protections: • Short Circuit / Over Voltage / Over Current Over Temperature • Energy Efficiency Level VI or CoC Tier II • No Load Power Consumption: CEC level VI: ≤0.21W CoC Tier II: ≤0.15W • MTBF > 100,000 hours
HA1120 X Y X: AC Inlet: 1.C14 2.C8 3.C6 Y: Output voltage range
MODEL No.
MAX. OUTPUT POWER (W)
OUTPUT VOLTAGE (Vo)
MIN.
MAX.
LOAD REGULATION
LINE REGULATION
RIPPLE & NOISE
LOAD(Io)
LOAD(Io)
HA1120XA
80W
12-16V
0A
6.66A
± 5%
± 1%
240mV
HA1120XB
90W
12-16V
0A
7.5A
± 5%
± 1%
240mV
HA1120XC
90W
19-24V
0A
4.73A
± 5%
± 1%
360mV
HA1120XD
100W
12-16V
0A
8.33A
± 5%
± 1%
240mV
HA1120XE
100W
19-24V
0A
5.26A
± 5%
± 1%
360mV
HA1120XF
110W
12-16V
0A
9.16A
± 5%
± 1%
240mV
HA1120XG
110W
19-24V
0A
5.78A
± 5%
± 1%
360mV
HA1120XH
120W
12-16V
0A
10A
± 5%
± 1%
240mV
HA1120XJ
120W
19-24V
0A
6.31A
± 5%
± 1%
360mV
HA1120XK
100W
48-56V
0A
2.08A
± 5%
± 1%
840mV
HA1120XL
130W
48-56V
0A
2.70A
± 5%
± 1%
840mV
HA1120XL
120W
36V
0A
3.33A
± 5%
± 1%
840mV
NOTE: 1: Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 2: Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 3: Max. Power (W) >=Vo x Io
Electrical Specification INPUT •Input Range 100 to 240VAC
• Frequency 50 to 60Hz
• Input Current <= 2.0A
• Inrush Current 60A/100VAC 120A/230VAC
• Hold Up Time ≥8.3ms
• Turn On Time <=3s
OUTPUT •Over Voltage Protection Latch off
•Short Circuit Protection Auto Recovery/Latch off
•Over Current Protection Auto Recovery/Latch off
•Over Temperature Protection Latch off
ENVIRONMENTAL •Operating Temperature 0 to 40°C
•Storage Temperature -20 to 85°C
•Operation Humidity 10% to 90 %
•Storage Humidity 5% to 95 %
SAFETY • Certified for the whole series: EN 62368-1,CCC
Mechanical Specification
Product Introduction
If you've ever been stranded with a dead car battery, you know the feeling of being helpless. A car jump starter is a lifesaver in this situation, but what if your car doesn't have one? Or what if you're on a trip and your car charger is incompatible with the outlets in the country you're visiting? This is where a universal AC DC-DC adapter comes in handy.
A good quality universal AC DC-DC adapter will work with any car charger and any outlet. It's a must-have for anyone who travels frequently or whose car doesn't have a built-in jump starter. In this blog post, we'll review the best universal AC DC-DC adapters on the market and help you choose the right one for your needs.
Product Advantage
Assuming you would like a list of reasons for why the product is advantageous:
1. The adapter is easy to use and can be used with any car. 2. The adapter is very versatile and can be used to charge phones, tablets, and other devices. 3. The adapter is very affordable and is a great value for the money. 4. The adapter is very portable and can be easily carried with you wherever you go.
Product Uses
There are a lot of products on the market that are designed to work with both AC and DC power. The most common use for these products is in the automotive industry. Many car companies offer adapters that allow you to use your car's battery to power other devices.
These adapters typically have multiple ports that you can plug into, making them perfect for powering things like phone chargers, laptops, and even small appliances. They're also great for camping or other outdoor activities where you might not have access to traditional AC power sources.
Universal AC DC-DC adapters are becoming increasingly popular as more and more people realize their usefulness. If you're looking for a way to power your devices while on the go, then an adapter like this is definitely worth considering.
80W ~ 130W Max. Features: • 100 --240VAC Universal Input • Active PFC Function • LED Indicator • Protections: • Short Circuit / Over Voltage / Over Current Over Temperature • Energy Efficiency Level VI or CoC Tier II • No Load Power Consumption: CEC level VI: ≤0.21W CoC Tier II: ≤0.15W • MTBF > 100,000 hours
HA1120 X Y X: AC Inlet: 1.C14 2.C8 3.C6 Y: Output voltage range
MODEL No.
MAX. OUTPUT POWER (W)
OUTPUT VOLTAGE (Vo)
MIN.
MAX.
LOAD REGULATION
LINE REGULATION
RIPPLE & NOISE
LOAD(Io)
LOAD(Io)
HA1120XA
80W
12-16V
0A
6.66A
± 5%
± 1%
240mV
HA1120XB
90W
12-16V
0A
7.5A
± 5%
± 1%
240mV
HA1120XC
90W
19-24V
0A
4.73A
± 5%
± 1%
360mV
HA1120XD
100W
12-16V
0A
8.33A
± 5%
± 1%
240mV
HA1120XE
100W
19-24V
0A
5.26A
± 5%
± 1%
360mV
HA1120XF
110W
12-16V
0A
9.16A
± 5%
± 1%
240mV
HA1120XG
110W
19-24V
0A
5.78A
± 5%
± 1%
360mV
HA1120XH
120W
12-16V
0A
10A
± 5%
± 1%
240mV
HA1120XJ
120W
19-24V
0A
6.31A
± 5%
± 1%
360mV
HA1120XK
100W
48-56V
0A
2.08A
± 5%
± 1%
840mV
HA1120XL
130W
48-56V
0A
2.70A
± 5%
± 1%
840mV
HA1120XL
120W
36V
0A
3.33A
± 5%
± 1%
840mV
NOTE: 1: Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line. 2: Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 3: Max. Power (W) >=Vo x Io
Electrical Specification INPUT •Input Range 100 to 240VAC
• Frequency 50 to 60Hz
• Input Current <= 2.0A
• Inrush Current 60A/100VAC 120A/230VAC
• Hold Up Time ≥8.3ms
• Turn On Time <=3s
OUTPUT •Over Voltage Protection Latch off
•Short Circuit Protection Auto Recovery/Latch off
•Over Current Protection Auto Recovery/Latch off
•Over Temperature Protection Latch off
ENVIRONMENTAL •Operating Temperature 0 to 40°C
•Storage Temperature -20 to 85°C
•Operation Humidity 10% to 90 %
•Storage Humidity 5% to 95 %
SAFETY • Certified for the whole series: EN 62368-1,CCC
Mechanical Specification
Product Introduction
If you've ever been stranded with a dead car battery, you know the feeling of being helpless. A car jump starter is a lifesaver in this situation, but what if your car doesn't have one? Or what if you're on a trip and your car charger is incompatible with the outlets in the country you're visiting? This is where a universal AC DC-DC adapter comes in handy.
A good quality universal AC DC-DC adapter will work with any car charger and any outlet. It's a must-have for anyone who travels frequently or whose car doesn't have a built-in jump starter. In this blog post, we'll review the best universal AC DC-DC adapters on the market and help you choose the right one for your needs.
Product Advantage
Assuming you would like a list of reasons for why the product is advantageous:
1. The adapter is easy to use and can be used with any car. 2. The adapter is very versatile and can be used to charge phones, tablets, and other devices. 3. The adapter is very affordable and is a great value for the money. 4. The adapter is very portable and can be easily carried with you wherever you go.
Product Uses
There are a lot of products on the market that are designed to work with both AC and DC power. The most common use for these products is in the automotive industry. Many car companies offer adapters that allow you to use your car's battery to power other devices.
These adapters typically have multiple ports that you can plug into, making them perfect for powering things like phone chargers, laptops, and even small appliances. They're also great for camping or other outdoor activities where you might not have access to traditional AC power sources.
Universal AC DC-DC adapters are becoming increasingly popular as more and more people realize their usefulness. If you're looking for a way to power your devices while on the go, then an adapter like this is definitely worth considering.
