Laptop 14v Universal DC-DC Adapter

Features
• Universal Input Voltage: 100 --240VAC
• LED Indicator
• LPS Compliance
• Protections:
• Short Circuit / Over Voltage
Over Current / Over Temperature
• Energy Efficiency Level VI or CoC Tier II
• No Load Power Consumption:
Output Power < 50W:
≤0.1W(VI), ≤0.075W(Tier II)
Output Power ≥ 50W:
≤0.21W(VI), ≤0.15W(Tier II)
• MTBF > 100,000 hours

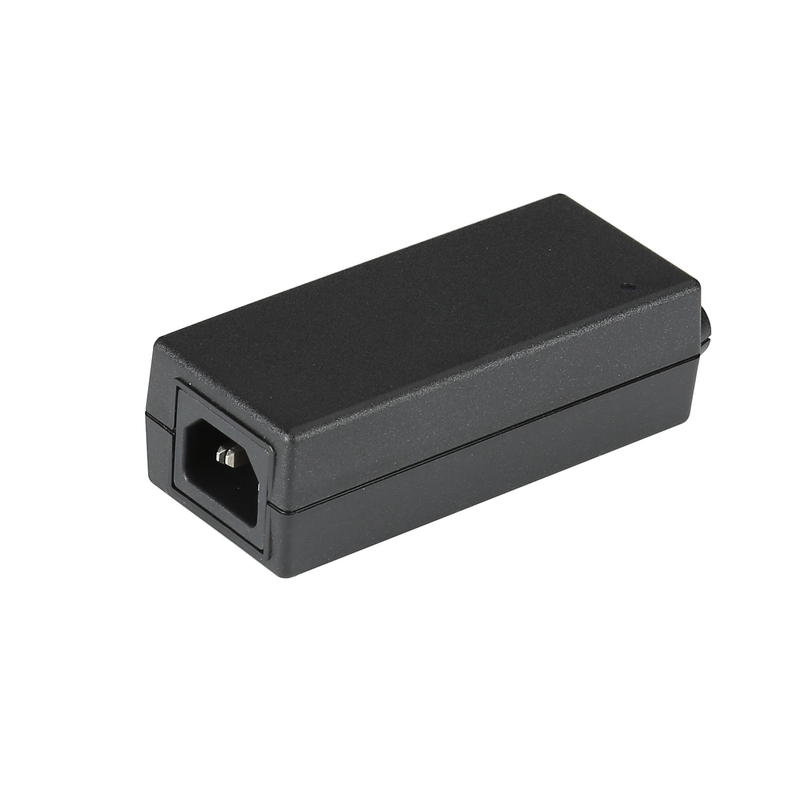

HA1065 X Y
X:AC Inlet: 1. C14  2. C8  3. C6
Y:Output voltage range

NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) >=Vo x Io


Electrical Specification




INPUT
• Input Range                 100 to 240 VAC

• Frequency                     50 to 60Hz

• Input Current                <=2.0A

• Inrush Current              80A/100VAC  120A/230VAC

• Hold Up Time               ≥8.3ms

• Turn On Time               <=3s



OUTPUT
•Over Voltage Protection         Auto Recovery / Latch off
•Short Circuit Protection          Auto Recovery
•Over Current Protection         Auto Recovery



ENVIRONMENTAL


•Operating Temperature            0 to 40°C

•Storage Temperature                -20 to 85°C

•Operation Humidity                  10% to 90 %

•Storage Humidity                      5% to 95 %



SAFETY

• Certified for the whole series: EN60950, CCC
• Certified for the assigned models: EN60335, PSE

Product Introduction

If you've ever owned a laptop, you know that they come with a specific AC adapter that is used to charge the battery. These adapters are usually rated at 19V and 3.42A and have a barrel connector that is 5.5mm in diameter and 2.1mm in inner diameter. While these adapters work great for charging your laptop, they can be very inconvenient if you lose or damage them. This is where a universal DC-DC adapter comes in handy.

A universal DC-DC adapter is an adapter that can be used with multiple laptops and devices. They are typically rated at 12-24V and 2-4A and have a standard USB Type-A connector. This means that you can use the same adapter to charge your laptop, phone, tablet, etc. Universal DC-DC adapters are very handy for traveling as well since you don't have to worry about bringing multiple adapters with you.

There are a few things to keep in mind when using a universal DC-DC adapter though. First, make sure that the adapter is compatible with your device. Second, always check the voltage and amperage rating of the adapter to make sure it is within the range of what your device can accept. And finally, make sure to unplug the adapter from your device when not in use to avoid overcharging or damaging your battery.

Product Advantage

Laptops have the advantage of being small and lightweight, making them easy to carry around. They also tend to have longer battery life than other types of computers.

Universal DC-DC adapters have the advantage of being able to work with a variety of different devices. They are also typically more affordable than laptops.

Product Uses

There are a few key ways in which a laptop DC adapter can come in handy:

1. When your laptop's battery is running low and you need to conserve power, you can use the adapter to plug into an outlet and continue working without having to worry about your battery dying.

2. If you're traveling and don't have access to an outlet, you can use the adapter to charge your laptop from a car cigarette lighter or other 12V power source.

3. In a pinch, you can even use the adapter to jump-start your car if the battery is dead! Just make sure you have the right kind of adapter for your particular make and model of car.

With so many uses, it's no wonder that a laptop DC adapter can be such a handy tool to have around!
