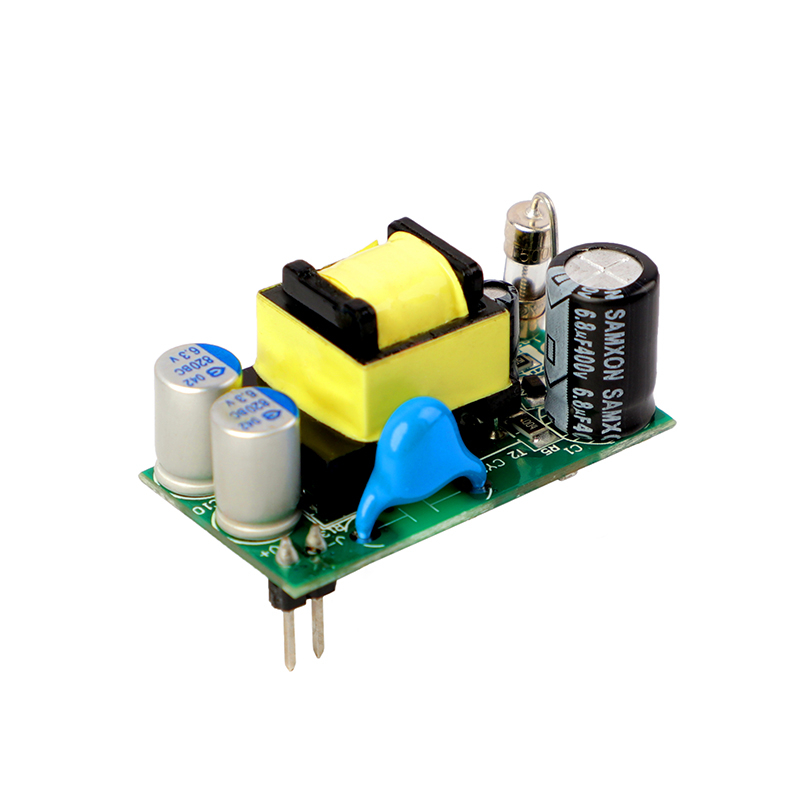

12x16 Monitor LED/LCD Open Frame

5W ~ 10W Max.

Features:
• 100 --240VAC Universal Input
• Protection:
Short Circuit / Over Voltage / Over Current
• MTBF > 100,000 hours

HF1010 X

X: Output range

1.  Ripple & Noise is mEAsured by using 20MHz bandwidth limited oscilloscope and terminated EAch output with a 0.1uF

  ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.

2. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.

3. Max. Power (W) >=Vo x Io

Electrical Specification

INPUT

•Input Range          100 to 240VAC

•Frequency             50 to 60Hz

•Input Current         <=1.5A

•Inrush Current       60A/100VAC, 120A/230VAC

• Hold Up Time       8.3ms min.

•Turn On Time         <= 3s

OUTPUT

•Over Current Protection       Auto Recovery

•Short Circuit Protection        Auto Recovery

•Over Voltage Protection       Auto Recovery

ENVIRONMENTAL

• Operating Temperature       0 to 50°C

• Storage Temperature          -20 to 85°C

• Operation Humidity             10% to 90%

• Storage Humidity                 5% to 95%

SAFETY

• Certified for the whole series: EN60950 CCC

Mechanical Specification

• Unit Size: L35 x W18.7 x H18.2(mm)

• DC Input: Cigarette Plug

• Weight: 200+/-10g

Product Introduction

An open frame monitor is a type of LCD or LED computer monitor that does not have a housing or bezel surrounding the display. This makes the monitor lighter and more affordable, but it also means that it is more susceptible to damage. Open frame monitors are typically used in industrial settings or by businesses who want to save money on their computer equipment.

If you're looking for a new monitor for your computer, you may be wondering if an open frame monitor is right for you. Here's what you need to know about open frame monitors, including their benefits and drawbacks.

Benefits of Open Frame Monitors

One of the main benefits of open frame monitors is that they are usually less expensive than enclosed monitors. This is because they don't require as much material to manufacture, and they often use cheaper components. Open frame monitors are also typically lighter weight than enclosed monitors, making them easier to transport. Finally, open frame monitors often have a smaller footprint since they don't need extra space for housing or bezels.

Drawbacks of Open Frame Monitors

While there are several advantages to using an open frame monitor, there are also some potential drawbacks to keep in mind. One of the biggest issues with open frame monitors is that they are more susceptible to damage since there's nothing protecting the screen from impact. If you're using your monitor in an industrial setting or in any other environment where it could be subject to knocks or bumps, an open frame monitor may

Product Advantage

When it comes to monitors, one size does not fit all. That's why our x monitor is available in a variety of sizes to suit your needs. Whether you're looking for a small monitor for your desktop or a larger one for your gaming setup, we have you covered.

Our x monitor also has a number of other advantages over other monitors on the market. For example, our advanced LED backlighting system provides superior image quality and color reproduction, while our slim bezel design gives you more screen real estate to work with. Additionally, our monitor features built-in speakers for convenient audio playback.

Product Uses

Open frame monitors are most commonly used in industrial and commercial settings where space is limited and a sleek, unobtrusive look is desired. They are also popular in public places like restaurants and airports where durability and easy maintenance are key.
