Display LED/LCD Computer Open Frame

5W ~ 10W Max.

Features:
• 100 --240VAC Universal Input
• Protection:
Short Circuit / Over Voltage / Over Current
• MTBF > 100,000 hours

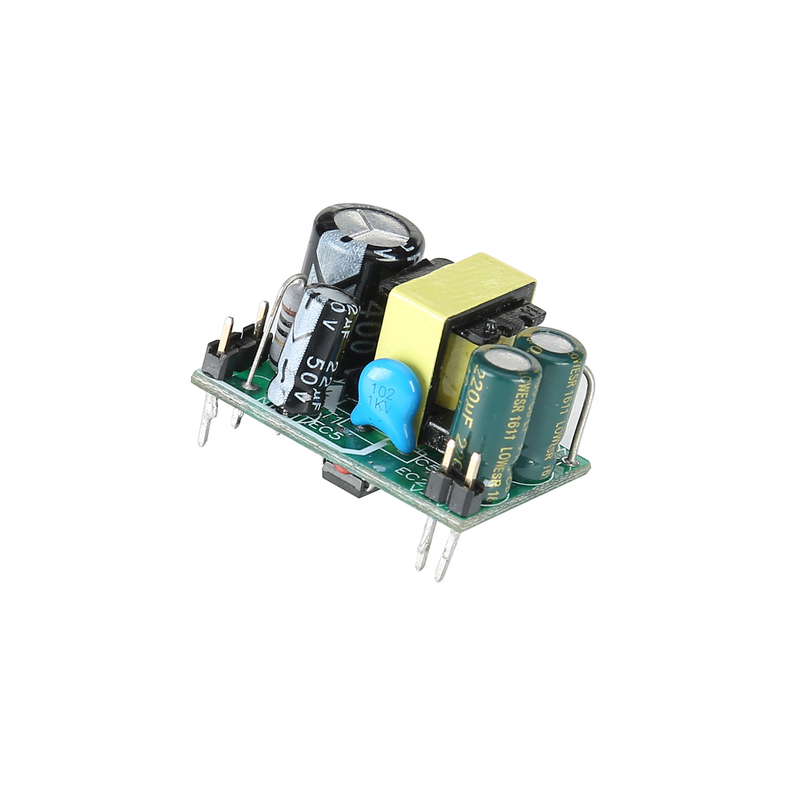

HF1010 X

X: Output range

1.  Ripple & Noise is mEAsured by using 20MHz bandwidth limited oscilloscope and terminated EAch output with a 0.1uF

 ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.

2. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.

3. Max. Power (W) >=Vo x Io

Electrical Specification

INPUT

•Input Range          100 to 240VAC

•Frequency             50 to 60Hz

•Input Current         <=1.5A

•Inrush Current       60A/100VAC, 120A/230VAC

• Hold Up Time       8.3ms min.

•Turn On Time         <= 3s

OUTPUT

•Over Current Protection       Auto Recovery

•Short Circuit Protection        Auto Recovery

•Over Voltage Protection       Auto Recovery

ENVIRONMENTAL

• Operating Temperature       0 to 50°C

• Storage Temperature          -20 to 85°C

• Operation Humidity             10% to 90%

• Storage Humidity                 5% to 95%

SAFETY

• Certified for the whole series: EN60950 CCC

Mechanical Specification

• Unit Size: L35 x W18.7 x H18.2(mm)

• DC Input: Cigarette Plug

• Weight: 200+/-10g

Product Introduction

An LED/LCD open frame is a type of computer display that does not have a housing or bezel surrounding the screen. This makes it ideal for use in industrial and commercial settings where space is limited, or where the display will be mounted in a custom enclosure.

Open frame displays are available in a wide range of sizes and resolutions, making them suitable for a variety of applications. They can be used as standalone displays or integrated into larger systems.

LED/LCD open frames are typically more expensive than their enclosed counterparts, but they offer several advantages. These include improved heat dissipation, higher quality images, and longer lifespan.

Product Advantage

There are many advantages to using an open frame display over a traditional display. First, open frame displays offer a wider viewing angle than traditional displays. This means that you can see the screen from more angles, making it easier to view in different lighting conditions. Second, open frame displays are thinner and lighter than traditional displays, making them more portable and easier to transport. Third, open frame displays use less power than traditional displays, making them more energy-efficient. Finally, open frame displays offer a higher refresh rate than traditional displays, meaning that they can show moving images more smoothly.

Product Uses

A display open frame is a type of LCD or LED computer that is usually used in a commercial setting. It is designed to be easily installed into a preexisting structure, such as a kiosk or an enclosure. Display open frames typically have VESA mountings on the back, which makes them easy to install.

There are many uses for display open frames. They can be used as digital signage, in trade show booths, in store displays, and in public spaces. They are also often used in office buildings and schools, where they can be used for informational purposes or for displaying digital artwork.
