24x36 Monitor LED/LCD Open Frame

30 -- 65W Max.

Features:
• 100 --240VAC Universal Input
Short Circuit / Over Voltage / Over Current
• MTBF > 100,000 hours

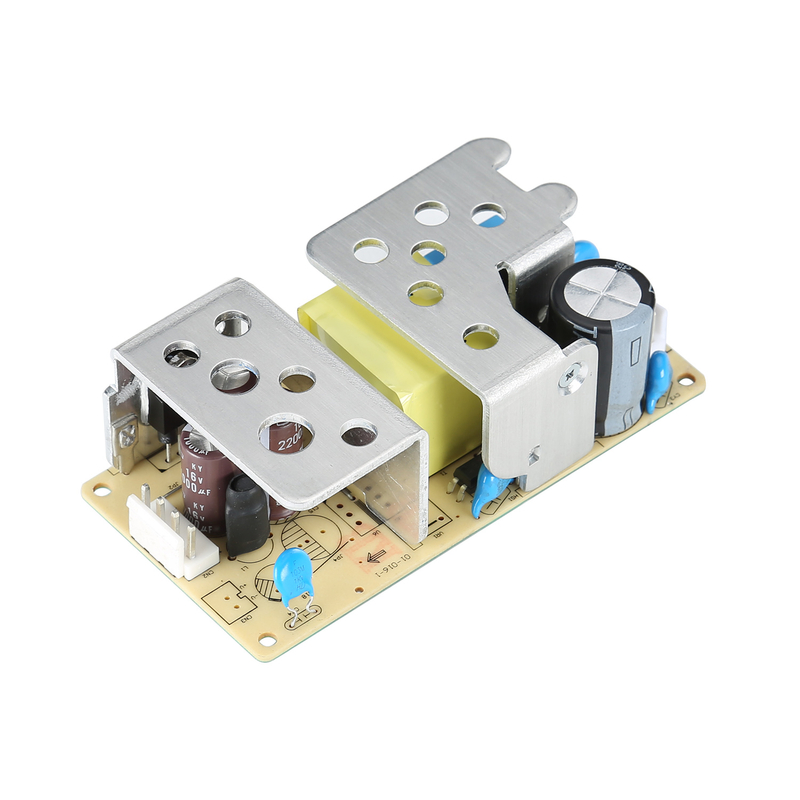

HF1065 X

X: Output range

NOTE:

1: Ripple & Noise is mEAsured by using 20MHz bandwidth limited oscilloscope and terminated EAch output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.

2: Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.

3: Max. Power (W) >=Vo x Io

Electrical Specification

INPUT

•Input Range                100 to 240 VAC

•Frequency                   50 to 60Hz

•Input Current               <= 1.5A

•Inrush Current           60A/100VAC, 120A/230VAC

• Hold Up Time             8.3ms min.

•Turn On Time               <= 3s

OUTPUT

•Over Current Protection           Auto Recovery

•Short Circuit Protection            Auto Recovery

•Over Voltage Protection           Auto Recovery

ENVIRONMENTAL

•  Operating Temperature          0 to 50°C

•  Storage Temperature             -20 to 85°C

• Operation Humidity                 10% to 90%

• Storage Humidity                     5% to 95%

SAFETY

• Certified for the whole series: CCC(Under Proceeding)

Mechanical Specification

• Case Size: L101.6 x W50.8 x H37(mm)

• Input Connector: JST VH series or Euivalent

• Output Connector: JST VH series or Euivalent

• Weight: 200 +/-10g

Product Introduction

Open frame monitors provide a cost-effective solution for those who want to use LCD or LED technology in their projects. By eliminating the bezel and housing found in traditional monitors, open frame monitors are significantly less expensive. Open frame monitors also offer more flexibility in terms of installation and placement.

For many applications, an open frame monitor will be the best choice. However, there are some things to keep in mind when choosing an open frame monitor. First, make sure that the monitor you select is compatible with the device you plan to use it with. Second, consider the environment in which the monitor will be used. Open frame monitors are not typically recommended for use in high dust or high humidity environments.

If you're looking for an affordable way to incorporate LCD or LED technology into your project, an open frame monitor may be the perfect solution. Keep these things in mind when making your selection and you'll be sure to find the perfect open frame monitor for your needs.

Product Advantage

The product advantage of the x Monitor LED/LCD Open Frame is that it offers a great value for the money. It has a high quality build and a sleek design, making it an excellent choice for those looking for an affordable option. Additionally, its open frame design makes it easy to access and install, making it a great choice for those who want to do so.

Product Uses

There are many uses for an open frame monitor. Here are just a few examples:

-Digital signage: Open frame monitors are often used in digital signage applications because they offer a high level of visibility and can be easily mounted in a variety of locations.

-POS systems: Open frame monitors are also commonly used in POS (point of sale) systems. They offer a space-saving design and can be easily integrated into existing hardware.

-Kiosks: Open frame monitors are often used in kiosks due to their durability and easy installation.
