30 -- 65W Max.
Features:
• 100 --240VAC Universal Input
Short Circuit / Over Voltage / Over Current
• MTBF > 100,000 hours

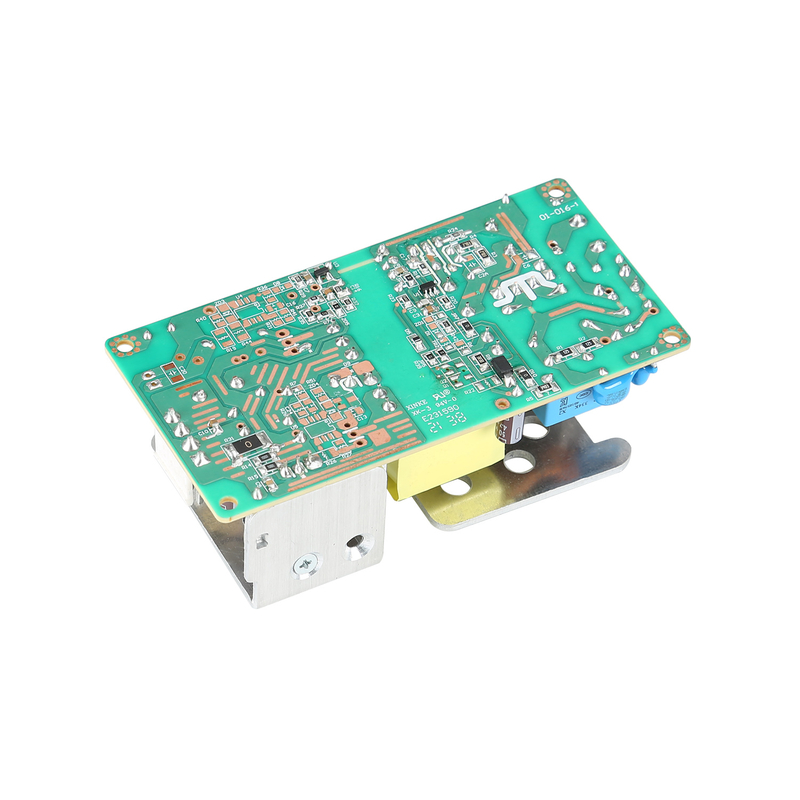

HF1065 X
X: Output range
| MODEL No. | MAXOUTPUT POWER (W) | OUTPUT VOLTAGE (Vo) | MIN. | MAX. | LOAD REGULATION | RIPPLE & NOISE | ||||
| LOAD | LOAD | |||||||||
| Single Output | HF1065A | 65W | 12V,15V,19V,24V,36V,48V | 0A | 5.41A | ± 5% | 720mV | |||
| HF1065A | 60W | 12V,15V,19V,24V,36V,48V | 0A | 5A | ± 5% | 720mV | ||||
| HF1065A | 50W | 5V, 12V,15V,19V,24V,36V,48V | 0A | 10A | ± 5% | 720mV | ||||
| HF1065A | 45W | 5V, 12V,15V,19V,24V,36V,48V | 0A | 9A | ± 5% | 720mV | ||||
| HF1065A | 40W | 5V, 12V,15V,19V,24V,36V,48V | 0A | 8A | ± 5% | 720mV | ||||
| HF1065A | 30W | 5V, 12V,15V,19V,24V,36V,48V | 0A | 6A | ± 5% | 720mV | ||||
| Dual Output | HF2065A | 30 -- 65W | 12V,15V,19V,24V | 0A | 4.41A | ± 5% | 300mV | |||
| 5V,12V | 0A | 1A | ± 5% | 180mV | ||||||
NOTE:
1: Ripple & Noise is mEAsured by using 20MHz bandwidth limited oscilloscope and terminated EAch output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2: Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3: Max. Power (W) >=Vo x Io
Electrical Specification
INPUT
•Input Range 100 to 240 VAC
•Frequency 50 to 60Hz
•Input Current <= 1.5A
•Inrush Current 60A/100VAC, 120A/230VAC
• Hold Up Time 8.3ms min.
•Turn On Time <= 3s
OUTPUT
•Over Current Protection Auto Recovery
•Short Circuit Protection Auto Recovery
•Over Voltage Protection Auto Recovery
ENVIRONMENTAL
• Operating Temperature 0 to 50°C
• Storage Temperature -20 to 85°C
• Operation Humidity 10% to 90%
• Storage Humidity 5% to 95%
SAFETY
• Certified for the whole series: CCC(Under Proceeding)
Mechanical Specification
• Case Size: L101.6 x W50.8 x H37(mm)
• Input Connector: JST VH series or Euivalent
• Output Connector: JST VH series or Euivalent
• Weight: 200 +/-10g
The x touch monitor is a high production open frame monitor that supports 10-point multi-touch. It is designed for use in industrial and commercial applications. The monitor features a LED backlight and a resistive touchscreen. It offers a wide viewing angle and is compatible with Windows and Linux operating systems.
The x touch monitor is a high production open frame monitor that provides an excellent viewing experience. It has a clear and bright display with a wide viewing angle. The touch feature makes it easy to use and navigate. The monitor is durable and has a long lifespan. It is also energy efficient and has low power consumption.
The x Touch Monitor High Production Open Frame is a versatile product that has many uses. It can be used as a production monitor in factories and warehouses, or as a office monitor for general use. It is also a great choice for gaming and entertainment centers. This product is durable and reliable, making it a great choice for any environment.
