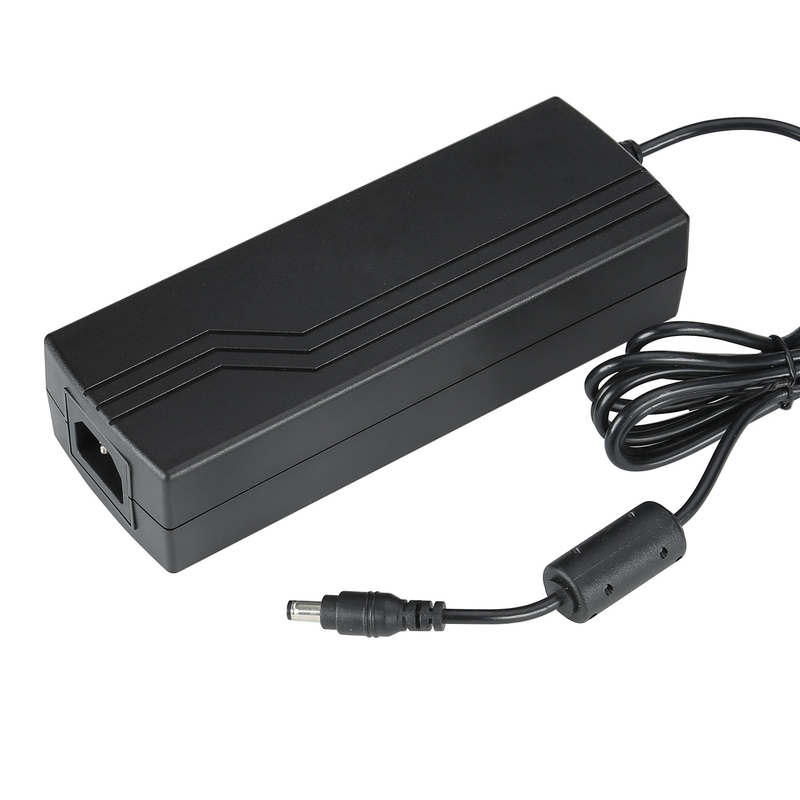

Laptop 19v AC Universal AC DC-DC Adapter

130W ~ 180W Max.

Features:
• 100 --240VAC Universal Input
• Active PFC Function
• LED Indicator
• Protections:
• Short Circuit / Over Voltage / Over Current
Over Temperature
• Energy Efficiency Level VI or CoC Tier II
• No Load Power Consumption:
≤0.21W(VI), ≤0.15W(Tier II)
• MTBF > 100,000 hours


HA1180 X Y
X:AC Inlet: 1.C14  2.C8  3.C6
Y: Output voltage range

NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF
   aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) >=Vo x Io


Electrical Specification



INPUT
• Input Range                      100 to 240 VAC

• Frequency                       50 to 60Hz

• Input Current                  <= 2.5A

• Inrush Current                60A/100VAC  120A/230VAC

• Hold Up Time                  ≥ 8.3ms

• Turn On Time                  <= 3s



OUTPUT
•Over Voltage Protection                 Latch off
•Short Circuit Protection                  Auto Recovery/Latch off
•Over Current Protection                 Auto Recovery/Latch off
•Over Temperature Protection         Latch off



ENVIRONMENTAL
•Operating Temperature            0 to 40°C

•Storage Temperature                -20 to 85°C

•Operation Humidity                  10% to 90 %

•Storage Humidity                      5% to 95 %



SAFETY
• Certified for the whole series: TUV EN 62368-1, FCC, CE
• Certified for the assigned models:



Mechanical Specification


• Case Size: L179 x W64.2 x H40(mm)
• AC Inlet: C14, C8, C6
• Weight: 710 +/-10g

Product Introduction

A laptop, also called a notebook computer or just notebook, is a small, portable personal computer with a "clamshell" form factor, typically having a thin LCD or LED computer screen mounted on the inside of the upper lid of the clamshell and an alphanumeric keyboard on the inside of the lower lid. The clamshell is opened up to use the computer. Laptops are folded shut for transportation, and thus are suitable for mobile use. Its name comes from its original purpose: lap-based computing.

The term "laptop" originally referred to a portable compute

Product Advantage

1. Product Advantage: The AC Universal AC DC-DC Adapter is a great product for those who want to use their laptops in different types of locations. With this adapter, you can easily use your laptop in an office, at home, or even in a car. This is a great advantage over other adapters that only work with specific types of outlets.

2. Ease of Use: The AC Universal AC DC-DC Adapter is very easy to use. All you need to do is plug it into the wall outlet and then into your laptop. This makes it much easier to use than other adapters that require you to fumble around with cords and plugs.

3. Convenience: The AC Universal AC DC-DC Adapter is also very convenient. It is small and lightweight, so you can easily carry it with you wherever you go. This means that you won’t have to worry about finding an outlet when you need to use your laptop.

4. Affordability: The AC Universal AC DC-DC Adapter is very affordable. It is a great value for the price, and it will save you money in the long run by eliminating the need for multiple adapters.

Product Uses

There are a variety of different ways that people use their laptop AC adapters. The most common way is to use it as a replacement for the standard AC adapter that comes with the computer. Many people find that their laptop runs more smoothly on DC power, so they use an adapter to plug it into the wall. Additionally, some people use their laptop AC adapter to charge other devices, like their cell phone or tablet. By using a universal AC DC-DC adapter, you can be sure that your laptop will always have the power it needs, no matter what you're using it for.
