Plug 12v 5 Amp Universal DC-DC Adapter

Availability:

Quantity:



Inquire Add to Basket

Product Description

130W ~ 180W Max.

Features:
• 100 --240VAC Universal Input
• Active PFC Function
• LED Indicator
• Protections:
• Short Circuit / Over Voltage / Over Current
Over Temperature
• Energy Efficiency Level VI or CoC Tier II
• No Load Power Consumption:
≤0.21W(VI), ≤0.15W(Tier II)
• MTBF > 100,000 hours

HA1180 X Y
X:AC Inlet: 1.C14 2.C8 3.C6
Y: Output voltage range

MODEL No.	MAX. OUTPUT POWER (W)	OUTPUT VOLTAGE (Vo)	MIN.	MAX.	LOAD REGULATION	LINE REGULATION	RIPPLE & NOISE
MODEL No.	MAX. OUTPUT POWER (W)	OUTPUT VOLTAGE (Vo)	LOAD(Io)	LOAD(Io)	LOAD REGULATION	LINE REGULATION	RIPPLE & NOISE
HA1180XA	130W	12-16V	0A	10.83A	± 5%	± 1%	240mV
HA1180XB	130W	19-24V	0A	6.84A	± 5%	± 1%	360mV
HA1180XC	140W	12-16V	0A	11.66A	± 5%	±1%	240mV
HA1180XD	140W	19-24V	0A	7.36A	± 5%	± 1%	360mV
HA1180XE	150W	12-16V	0A	12.5A	± 5%	± 1%	240mV
HA1180XF	150W	19-24V	0A	7.89A	± 5%	±1%	360mV
HA1180XG	150W	32-42V	0A	4.68A	± 5%	± 1%	630mV
HA1180XH	150W	44-56V	0A	3.12A	± 5%	± 1%	840mV
HA1180XJ	130W	32-42V	0A	4.06A	± 5%	±1%	640mV
HA1180XK	130W	44-56V	0A	2.95A	± 5%	±1%	840mV
HA1180XM	160W	12-16V	0A	13.33A	± 5%	± 1%	240mV
HA1180XN	160W	19-24V	0A	8.42A	± 5%	±1%	360mV
HA1180XP	170W	19-24V	0A	8.94A	± 5%	±1%	360mV
HA1180XQ	180W	19-24V	0A	9.47A	± 5%	± 1%	360mV
HA1180XR	180W	32-42V	0A	5.62A	± 5%	± 1%	630mV
HA1180XS	180W	44-56V	0A	3.75A	± 5%	±1%	840mV
HA1180XT	162W	36	0A	4.5A	± 5%	±1%	840mV

NOTE:
1 : Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF
aluminum capacitor at full load and nominal line.
2 : Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
3 : Max. Power (W) >=Vo x Io

Electrical Specification

INPUT
• Input Range 100 to 240 VAC

• Frequency 50 to 60Hz

• Input Current <= 2.5A

• Inrush Current 60A/100VAC 120A/230VAC

• Hold Up Time ≥ 8.3ms

• Turn On Time <= 3s

OUTPUT
•Over Voltage Protection Latch off
•Short Circuit Protection Auto Recovery/Latch off
•Over Current Protection Auto Recovery/Latch off
•Over Temperature Protection Latch off

ENVIRONMENTAL
•Operating Temperature 0 to 40°C

•Storage Temperature -20 to 85°C

•Operation Humidity 10% to 90 %

•Storage Humidity 5% to 95 %

SAFETY
• Certified for the whole series: TUV EN 62368-1, FCC, CE
• Certified for the assigned models:

Mechanical Specification

• Case Size: L179 x W64.2 x H40(mm)

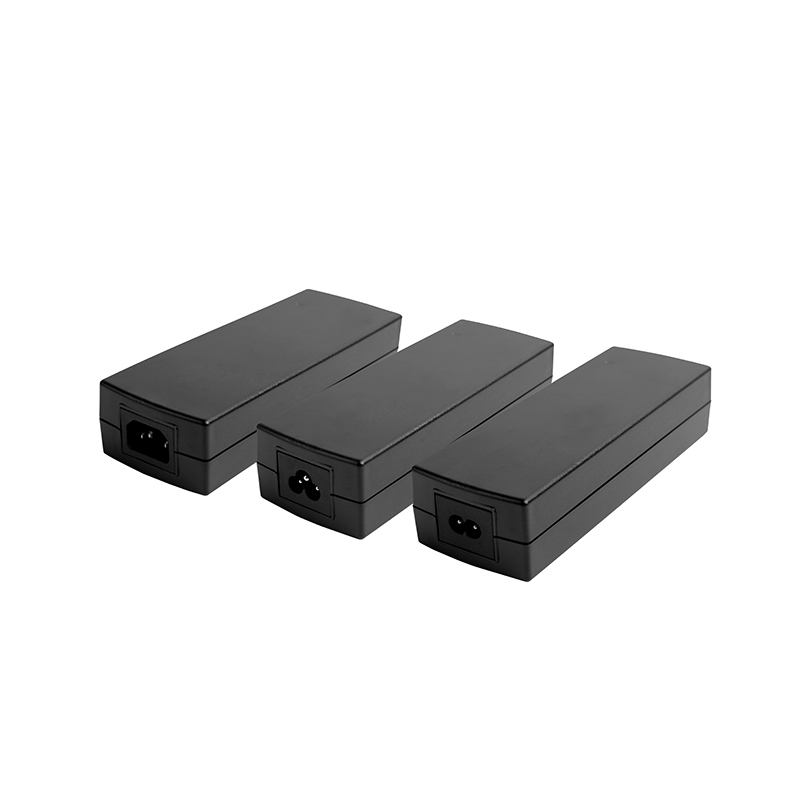

• AC Inlet: C14, C8, C6
• Weight: 710 +/-10g

Product Introduction

Are you tired of having to carry around multiple adapters for all your devices? Meet the Plug v Amp, the world’s first universal DC-DC adapter. The Plug v Amp can charge any device that uses a USB port, whether it’s a smartphone, tablet, or even a laptop. And it does so at lightning-fast speeds; in fact, it’s up to 10 times faster than a standard AC adapter.

Not only is the Plug v Amp incredibly convenient, it’s also eco-friendly. It uses patented GreenPower technology to reduce energy waste, meaning you’ll save money on your power bill and help the environment at the same time.

So if you’re looking for a hassle-free way to charge all your devices, the Plug v Amp is the perfect solution. Order yours today and start enjoying the benefits of this revolutionary product!

Product Advantage

The Plug v Amp is a universal DC-DC adapter that can be used with any type of device. It is small and compact, making it easy to take with you wherever you go. The Plug v Amp also has a built-in USB port so you can charge your devices while you are using them.

Product Uses

This adapter is designed to work with any 12-volt DC-powered device, including laptops, tablets, smartphones, and more. It can be used as a backup power source or as a primary power source for devices that require a constant connection to a power outlet. The adapter includes an LED indicator light that lets you know when it's properly connected to a power source.
